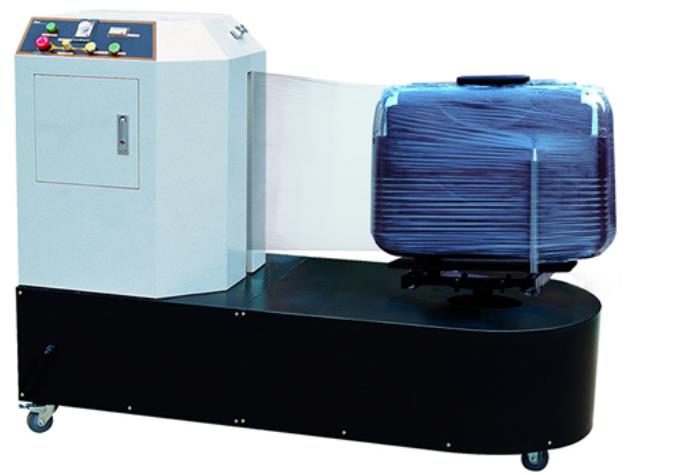

Airport Baggage Stretch Wrapping Machine
PLC control screen
Powered Pre-stretch film carriage up to 200% to reduce film consumption
Operator adjusts vertical rods to secure bag
Film Tension Control adjustment on the panel
Wrap layer adjuster
Platform speed 20RPM
Machine easy to be moved by one person
Airport luggage stretch wrapper is used in airport to wrap different luggage for safety transportation. This wrapper mainly used in airport to pack checked luggage. Wrap circles and film tension can be set on control panel. High efficiency and cost effective. Options like mobile film carriage and scale available.
Technical parameter
Max. Packing size | 180-350(W) × 400-800(L) × 300-600(H)mm |
Rotating speed: | 0-23RPM |
Power supply | 220V/50Hz/1 Phase: 0.5kw |
Weight Capacity | 100kgs |
Packing Materials Stretch film width | 500mm |
Dimension | 650(W)×1570(L)×1200(H)mm |
Machine Weight | 200kg |
Package dimension | 1800×750×1400mm |
Features
PLC control screen
Powered Pre-stretch film carriage up to 200% to reduce film consumption
Operator adjusts vertical rods to secure bag
Film Tension Control adjustment on the panel
Wrap layer adjuster
Platform speed 20RPM
Machine easy to be moved by one person
