Arm Rotary Stretch Wrapper With Top Press

Arm rotary wrapper with top press to hold pallet when wrapping. Top press is more friendly for light loads.


Motorised top press lowers from top to holds pallet while wrapping so pallet is not twisted. This machine works in safe condition. The wrapping realize dust-proof, moisture-proof, less packaging cost, improve packing efficiency, and reduce product loss in transportation.


  Contact Now
Product Details

Arm rotary wrapper with top platen to hold pallet when wrapping. Top platen is motorised and friendly for light loads.

Motorised top platen unit lowers onto top of pallet while wrapping, so pallet is not going out of shape. This machine works in safe condition. The wrapping realize dust-proof, moisture-proof, less packaging cost, improve packing efficiency, and reduce product loss in transportation.

Technology data:

Max load size(mm)

1200 (L)×1200(W) ×1600(H)mm

Conveyor height

500mm

Packing efficiency

0-40 loads / hour

Rotary arm speed

0-15rpm

Power supply

2.5 KW  380V 50HZ 3Phase

Max load capacity

2000kgs, depending on the conveyor

Wrapping requirement

Bottom wrapping starting from 2/3 of pallet, top wrapping 15cm higher than the height of pallet

Working ambiance

Indoor, normal temperature

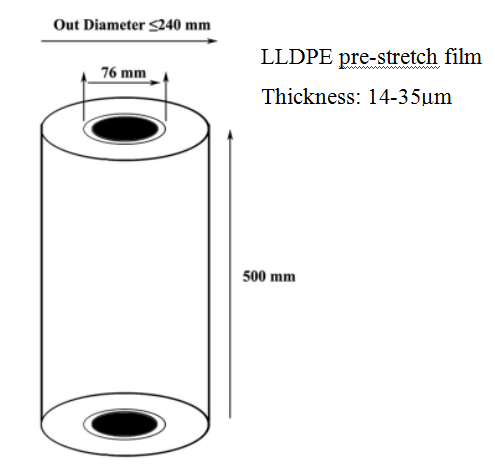

Wrapping material:

Wrapping material


Utility:

Compressed air

Pressure:            0.5-0.7 MPa

Dew point:          +2-+10℃  (7bar, +2-+10℃)

Filter:              40 µm

Air quality:         oil and water free air

Air consumption:    1000ml/min

Power supply:       380V (+/- 10%)/3phase/50Hz (+/- 1Hz)

Power installed:      ≈2.5kw

Supply scope

Machine main frame                                     1set

Gantry type frame, made of square steel tube, material: Q235 steel

Driving motor base is installed on the frame

The rotary arm are fixed on the frame connecting with slew bearing

Frame size: (to be confirmed by drawing)

Driving device for rotary arm                                1set

Frequency control motor with brake, power rated: 1.5KW

Rotary arm speed: n=15rpm (frequency motor with brake)

Two position limits equipped on two ends of rotary arm

Film carriage                                              1 set

Open-door type pre-stretch film carriage, stretch ratio 200% (1m to 3m)

Film carriage lifting driving: chain driving, good stability and high reliability

Driving reducer: worm gear reducer

Motor power: 0.37kw

Film carriage delivery device                                 1set

The photoelectric switch is installed on the film carriage, automatic detect the height of the pallet

Driving motor: AC motor, speed adjustable

Power rated of film delivery driving motor: 0.37KW

Film delivery following up mechanism

The film delivery following up the rotary arm rotating, the proximity switch control the start/stop of film delivery motor to follow up the rotary arm

Film auto feeding and cutting device                          1set

When stretch wrapping finish, the film will be cut and clamped automatically.

When the film tail is released from the clamp, the air shooter will blow the film tail up, then the film tail will be wrapped by stretch film and keep it tightly with the pallet to ensure no film tail produced.

Film hot melt cutting adopts electrical heating wire to cut the film.

After film being cut, the hot sealer will seal the film tail automatically to ensure no film tail come out.

Motorised top platen unit                                  1set

Motorised top platen in scissor design, press down against top of pallet for steady wrapping.

Pneumatic control system                                   1set

Air source required: the compressed air shall be supplied by end user to the inlet of the stop valve.

The pneumatic cylinder is controlled by control box.

Safety interlock device                                     1set

Start-up of the rotary arm & conveyor

The safety fence has the function of power cut when the door be opened. (For option of safeguard fence)

Electrical control system                                   1set

PLC control system, the wrapping layers, the wrapping cycles, and the time of top wrapping.

8 programs can be set in the PLC system for different packing options.

The safety command can be added on the control program, add PLC extension module to ensure the safety of the machine.

The operating parameter can be set on Siemens touch screen, more convenient for operation.

Photo eye will detect the height of the pallet automatically.

Slewing bearing driving the rotary arm, high precision positioning.

The driving speed of rotary arm, roll conveyor, film carriage lifting are adjustable individually, the film delivery speed is also adjustable, equipped alarm for film break.

The wrapping machine is powered with pause/manual/automatic wrapping switch function, in order to ensure the better operating.

The machine is equipped with running warning light.

The machine is equipped with Ethernet interface, used for outputting the related information of the wrapping machine (Include the production quantity, mechanical efficiency, fault information etc.)
