Automatic Carton Sealing Machine
Carton sealing machine has photoeye on roller conveyor that automatic detect carton length. The machine seals carton with adhesive tape on top and bottom. This machine is widely use in all industry.
Automatic detect carton dimension, carton sealer dimension to be designed;
Carton sealing machine has photoeye on roller conveyor, it detects carton length automatically. The machine seals carton with adhesive tape on top and bottom. This machine is widely use in all industry.
Automatic detect carton dimension, carton sealer dimension to be designed;
Tape width: 48/60/72*outer diameter 260mm (OPP)
Volt: 220V 50HZ 1P
Power: 240W
Belt width: 48mm
Belt driving speed: 17.5m/min
Conveyor height: 600-750mm adjustable
Air pressure: 5kg.f/cm-100nl/min.

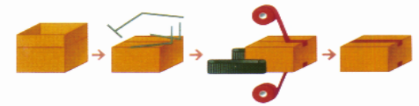

Flow chart:
