Automatic Kraft Paper Wrapper

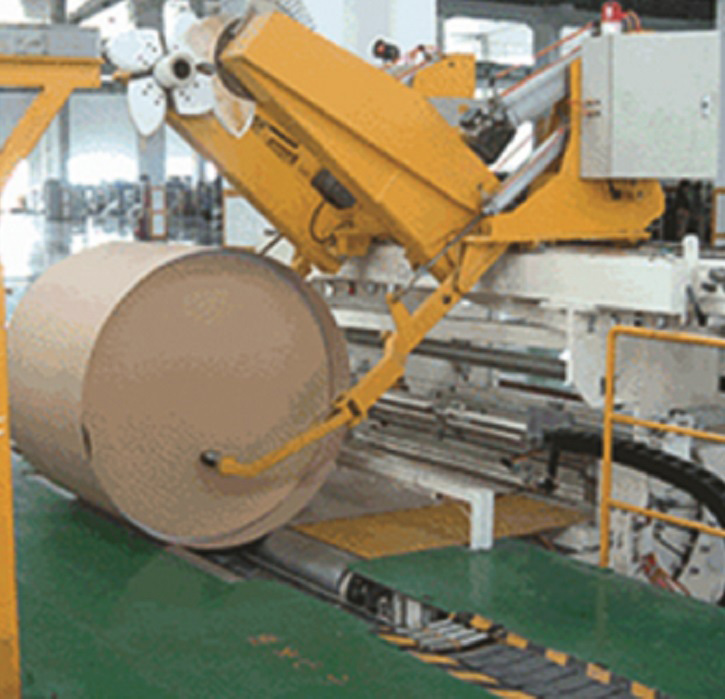

Kraft paper wrapper is automatic wrapping machine that wraps paper roll with kraft paper. It folds kraft paper edge in a regular shape for good protection of paper.

The surface of one karft paper guide roller is galvanized.

Kraft paper tension control system, magnetic control tension.

Driving roller

Driving roller 2pcs, including one roller that has motor, surface chrome-plating thickness 50um, diameter Ф200mm.

Pneumatic reel kicker 1 set to kick reel out of wrap position after wrapping.

Motor designed with inverter and brake.

Driving roller frame 1 set

Chilling water pipe is connected to the stop valve inlet and

outlet by the user.

Kraft paper & stretch film wrapper

Kraft paper unwind stand

Main material of the frame: carbon steel

The surface of one karft paper guide roller is galvanized.

Kraft paper tension control system, magnetic control tension.

Shaft head adopts inflatable shaft method.

Film carriage

AC drive motor match guide rail to mobile film carriage to left or right.

Mechanical stretch film head design with magnetic control film tension.

Edge folding device

One set of machine frame with spherical guiding rail.

Paper edge folding arm and supporting driven by 2 cylinders.

Two impellers made by nylon and the driving system.

The pneumatic control box and the elements.

Electrical & control system

PLC main control system for all devices of paper roll wrapping.

Control system is SIEMENS S7-1200 series programmable logic controller (PLC) system with the corresponding software package, with authorization software.

The main equipment of the electronic control system includes: HMI, the PLC control cabinet, the power control cabinet, the inverter cabinet, the field control box, the emergency stop button, the photocell, proximity switch, all kinds of control switch and lamps and buzzer alarm etc.

Control cabinet, power cabinet are installed in the control position, the operating panel , control box, and  emergency button etc are included.
