Radial Reel Stretch Wrapper

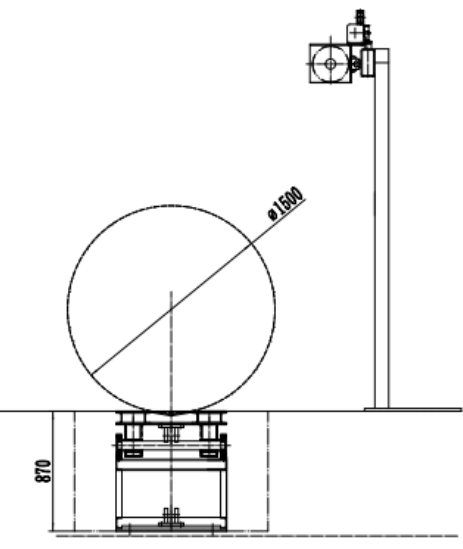

Packing size: diameter range 600-1500mm
Packing width: 300-1800mm
Packing efficiency: 1-3 minutes/roll (depending on the roll size)
Packing material: stretch film and EPE foam
Send and cut the stretch film manually. The wrapping is finished automatically.
Power: about 2.5 KW (380V 3P)
Radial reel wrapping machine is widely used in paper mill for reel protection. The wrapping can be axial or radial. According to different technical requirement, Reopac provides wrapping machine with different options like pallet/reel combined machine, auto ejection, scale weighing, auto cutting, etc.
Machine specification
Packing size: diameter range 600-1500mm
Packing width: 300-1800mm
Packing efficiency: 1-3 minutes/roll (depending on the roll size)
Packing material: stretch film and EPE foam
Send and cut the stretch film manually. The wrapping is finished automatically.
Power: about 2.5 KW (380V 3P)
Overall weight: about 900kgs
Stretch film holder and EPE foam roll holder included
Main function:
Manual film head delivery before wrap and cut film after wrap
Foot switch to start wrapping progress
Wrap layers can be flexible set on touch screen
PLC control system, easy control packing effect
Frequency control of motor speed, position accuracy
Film carriage: mechanical stretch film head
Press button to raise air-bag rise to kick paper roll out of wrap position
Pneumatic clamp device on both sides to hold paper roll when wrapping
