Paper Reel Slat Conveyor

Reel slat conveyor is made in V-Shaped on the surface, Special angle for better conveying of paper roll.

The conveyor slat is designed in common shaft structure.

Chain rollers installed with bearing inside, No oil and No contamination on paper rolls

Heavy duty steel structures, modular design


  Contact Now
Product Details

Reel slat conveyor is made in V-Shaped on the surface. Special angle for better conveying of paper roll. The conveyor slat is designed in common shaft structure.

Chain rollers installed with bearing inside, No oil and No contamination on paper rolls

Heavy duty steel structures, modular design

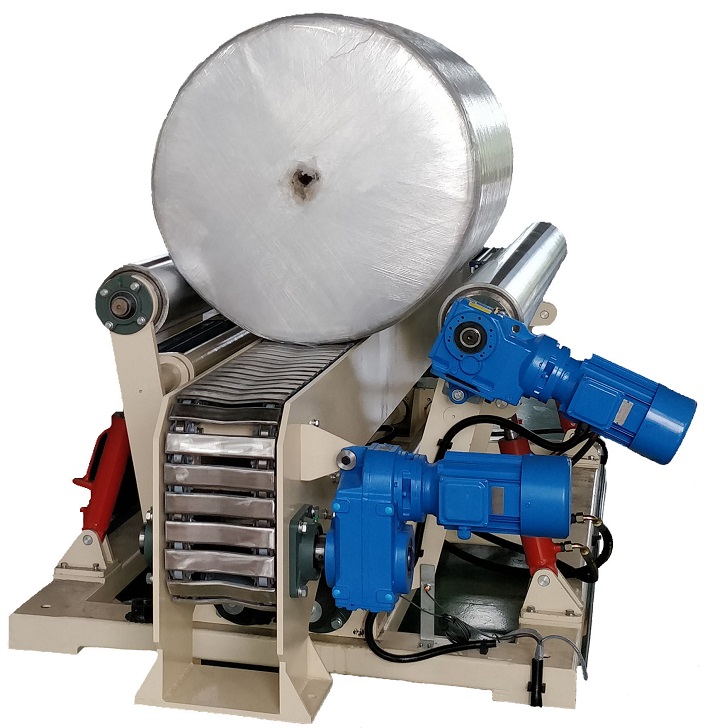

Steel Conveyor for Roll


Chain drive, chain pitch P = 63.5 mm, driving speed: 12m/min.

Slat width: B = 50 mm, slat length: L = 250 mm, Thickness: S = 10mm,

Slat material: carbon steel, powder coated in grey color

The conveyor slat is made in V-Shaped, Angle: 170°. The conveyor slat is designed in common shaft structure.

Slat conveyor speed: 12-18 meters/m, the slat conveyor is designed with high driving speed to meet the production requirement.

Loading capacity of slat conveyor: max. 2000kg

Chain rollers installed with bearing inside, No oil and No contamination on paper rolls

Heavy duty steel structures, modular design

Slat conveyor installed in floor level, convenient for the production operation.

Equipped with cover plates at the head and end of transmission units easy to dismantle.

Power resource and cable to be prepared by customer.
