Semi-Auto Horizontal Ring Stretch Wrapper

Semi-auto horizontal ring wrapper wraps tube or plate that is delivered to wrap position by conveyor or a platform.

It is designed for logistic solution of industries like profiled product, window and doors, furniture, plasterboard, rock wool, etc.


  Contact Now
Product Details

Semi-auto horizontal ring wrapper wraps tube or plate that is delivered to wrap position by conveyor or a platform.

It is designed for logistic solution of industries like profiled product, window and doors, furniture, plasterboard, rock wool, etc.

We offer a wide variety of options to meet your specific requirements. Each application is evaluated to provide the right solution to your needs.

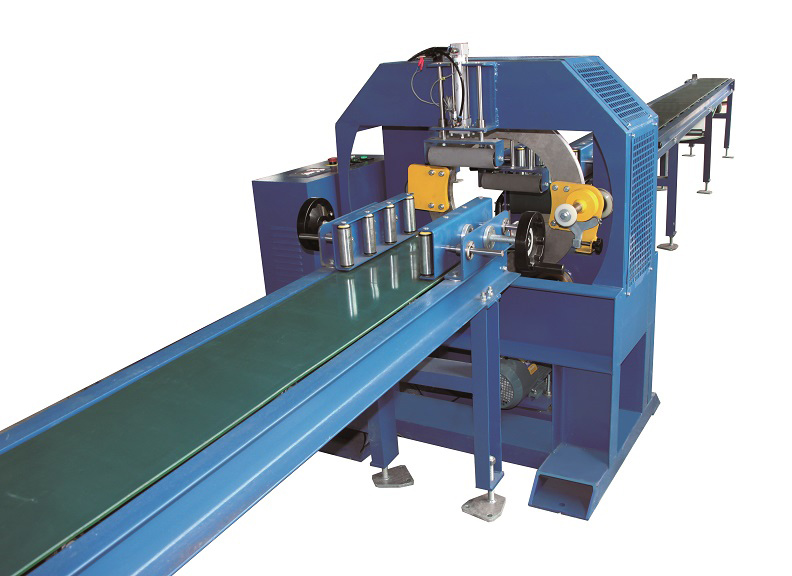

Horizontal Ring Stretch Wrapper


Specification

Rotating ring inner diameter

450mm

Wrapping dimension

Width: 50-300mm, Height: 50-200mm

Length: 750-6000mm, Weight: ≤150kg

Rotating ring speed

50-60RPM

Conveyor speed

8-10m/min

Compressed air pressure

0.5Mpa

Air consumption

10L/M

Motor power

rotating ring: 0.75kw

Conveying motor: 0.4kw×2

Stretch film

Width: 500mm, Core size: 3’’,Dia.: max 260mm, Thickness: 20-35μm


Control System

PLC electric control system, touch screen panel

Ring rotating speed controlled by the inverter

In-feed & out-feed conveyor speed controlled by the inverter

Start and finish cycles are controlled by photocells

Auto film cutting and conveying unit
