Wrapper For Door
Orbital door wrapper has a guide-rail that carries film carriage to wrap around goods. Different from a ring rail, the guide-rail can be more flexible and wider in dimension for extremely wide goods. This is the best choice for material in thin and wide shape. Orbital stretch wrapper takes less space in container. .
The wrapping is even and smooth on goods for better film tension and protection.
Orbital door wrapper has a guide-rail that carries film carriage to wrap around goods. Different from a ring rail, the guide-rail can be more flexible and wider in dimension for extremely wide goods. This is the best choice for material in thin and wide shape. Orbital stretch wrapper takes less space in container.
The wrapping is even and smooth on goods for better film tension and protection.
Specification
Rotating film carriage working diameter | 800-1800mm |
film carriage carrier outer diameter | 2500mm |
Carrier speed | 7 circles/min |
Rotating film carriage speed | Max. 12m/min |
Compressed air pressure | 0.4-0.6Mpa |
Air consumption | 1000ml |
Motor power | Film carriage carrier: 1.5kw; |
Width: 500mm; Core size: 3’’; Diameter: max 260mm Thickness: 20-35μm |
Control System
Siemens PLC electric control system, touch screen panel
Film carriage carrier rotating speed controlled by the inverter
In-feed & out-feed conveyor speed controlled by the inverter
Start and finish cycles are controlled by photocells
Auto film cutting and conveying unit
Supply scope:
1. The main wrapping machine, including:
A. Film carriage carrier, working on chain and driven by famous Chinese brand motor;
B. Pneumatic top platen system to keep board steady, the top platen is finished by roller, which enables smooth running while wrapping and conveying;
C. Film carriage, pre-stretch tension adjustable;
D. Automatic film feeding & cutting device, with special design, the device send film automatically and cut film after wrapping.

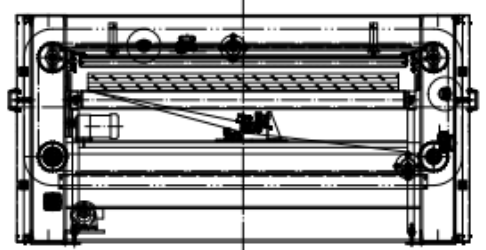

Diagram of the main machine:

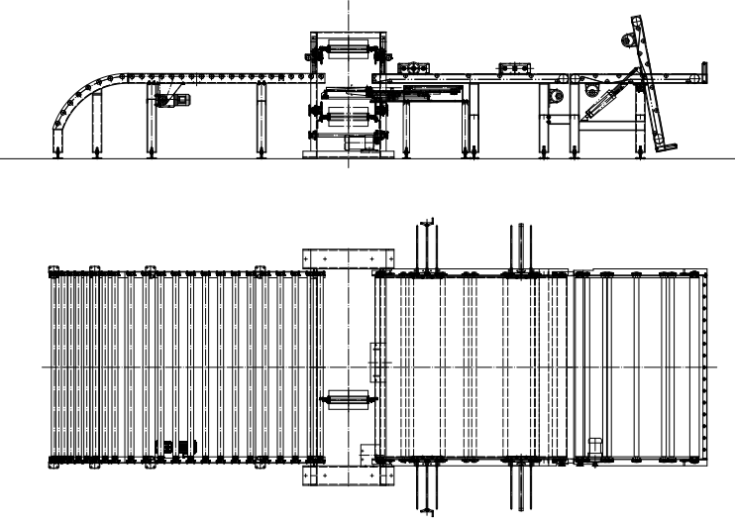

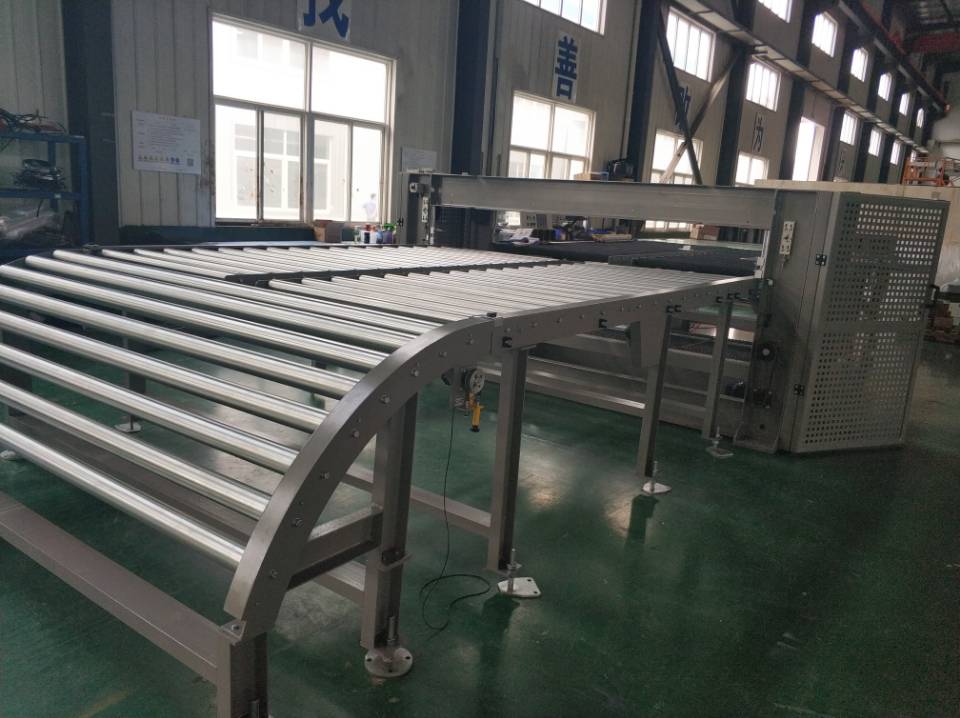

Diagram of the whole system (just for reference, subject to the final design):
